热缩圆形端子

产品中心 > 热缩型端子 > 热缩圆形端子

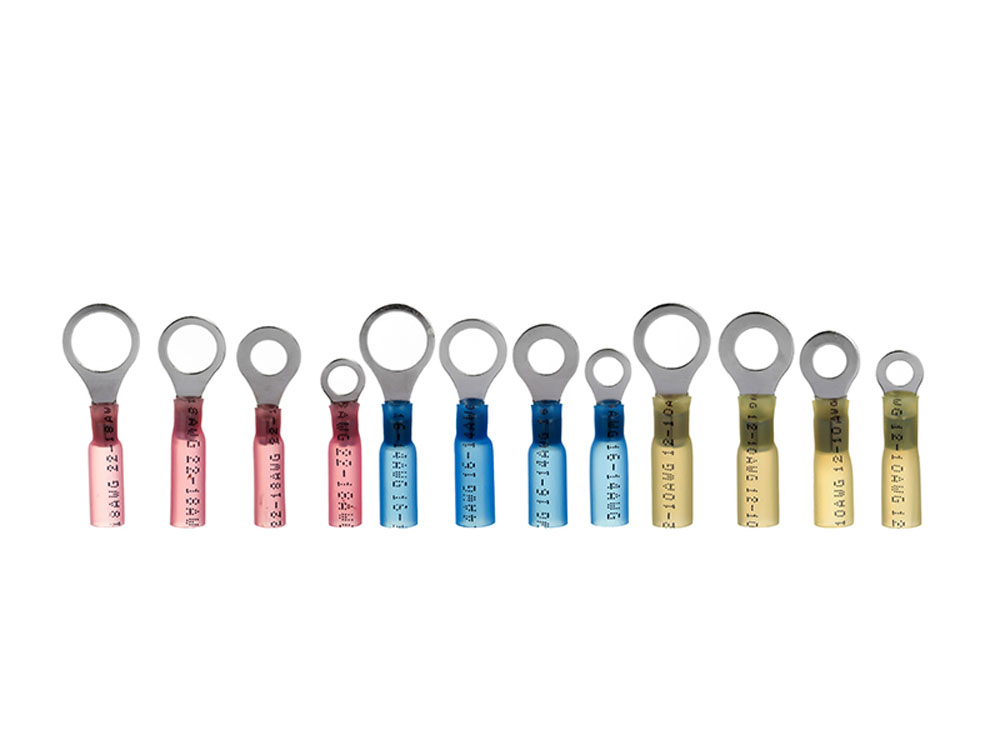

热缩圆形端子

应用

HSRT是由聚烯烃和热熔胶复合生产而成的热收缩套管,用于保护连接、防水防腐蚀,可以在粗糙的环境中加强固定和防震动,具有很好的绝缘保护电子连接器的功能。与常规的连接器相比,具有耐久性、易于安装、安装成本低的优势。

特性

收缩率3:1

材料优异的延伸性能,抗机械损害

透明度佳,提高更好的抗拉力

高弹性能,管材不易变形

操作温度范围

操作温度: -55℃~125℃

开始收缩温度: 80℃

最低完全收缩温度: 130℃

性能参数

Test Item

Characteristics

Test condition

Unaged

Tensile strength

Min. 18MPa

Room temp.

Elongation

Min. 200%

Aged

Tensile strength

Min. 11.5MPa

150℃/7 days

Elongation

Min. 100%

Voltage withstand and breakdown Voltage(Unaged)

Withstand 2.5 KV for 1minute and breakdown

Room temp.

Voltage withstand and breakdown Voltage(Aged)

Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage

150℃/7 days

Copper corrosion

No corrosion of bare copper

150℃/7 days

Copper stability

No sign of degradation Min.Elongation 100%

150℃/7 days

Cold bend

No crack

-40℃/4 hrs

Maximum secant modulus(2%)

250 MPa

-

Volume resistivity

Min.1014Ω-cm

-

Heat shock

No crack

200℃/4 hrs

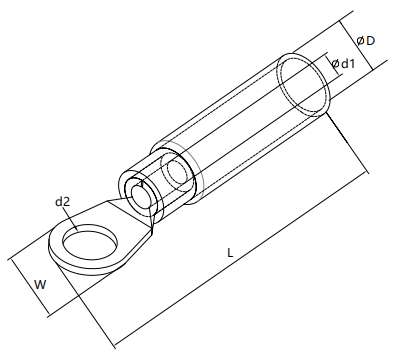

产品规格



Part. No



Wire Range



Stud Size(mm)

(mm)

Length(mm)



Insulator



Color

A.W.G

 mm2

Size

d1

d2

D

W

L

RVS 1.25-5

22-18

0.5-1.0

#10

1.6

5.2

4.7

8.0

31

PE

Red

RV 1.25-6

22-18

0.5-1.0

#1/4

1.6

6.2

4.7

11.6

36.5

PE

Red

RV 1.25-8

22-18

0.5-1.0

#5/16

1.6

8.2

4.7

11.6

37

PE

Red

RV 1.25-10

22-18

0.5-1.0

#3/8

1.6

10.3

4.7

13.6

37.5

PE

Red

RVL 2-5

16-14

1.5-2.5

#10

2.2

5.2

5.7

8.5

31.5

PE

Blue

RV 2-6

16-14

1.5-2.5

#1/4

2.2

6.2

5.7

12.0

36.5

PE

Blue

RV 2-8

16-14

1.5-2.5

#5/16

2.2

8.2

5.7

12.0

36.5

PE

Blue

RV 2-10

16-14

1.5-2.5

#3/8

2.2

10.3

5.7

13.6

39.5

PE

Blue

RVL 5.5-5

12-10

4.0-6.0

#10

3.4

5.2

6.7

9.5

35

PE

Yellow

RV 5.5-6

12-10

4.0-6.0

#1/4

3.4

6.2

6.7

12.0

39

PE

Yellow

RV 5.5-8

12-10

4.0-6.0

#5/16

3.4

8.2

6.7

15.0

44

PE

Yellow

RV 5.5-10

12-10

4.0-6.0

#3/8

3.4

10.3

6.7

15.0

44

PE

Yellow
