迷你封帽

迷你封帽

迷你封帽(专利号Patent No.:21420862653.6)

应用

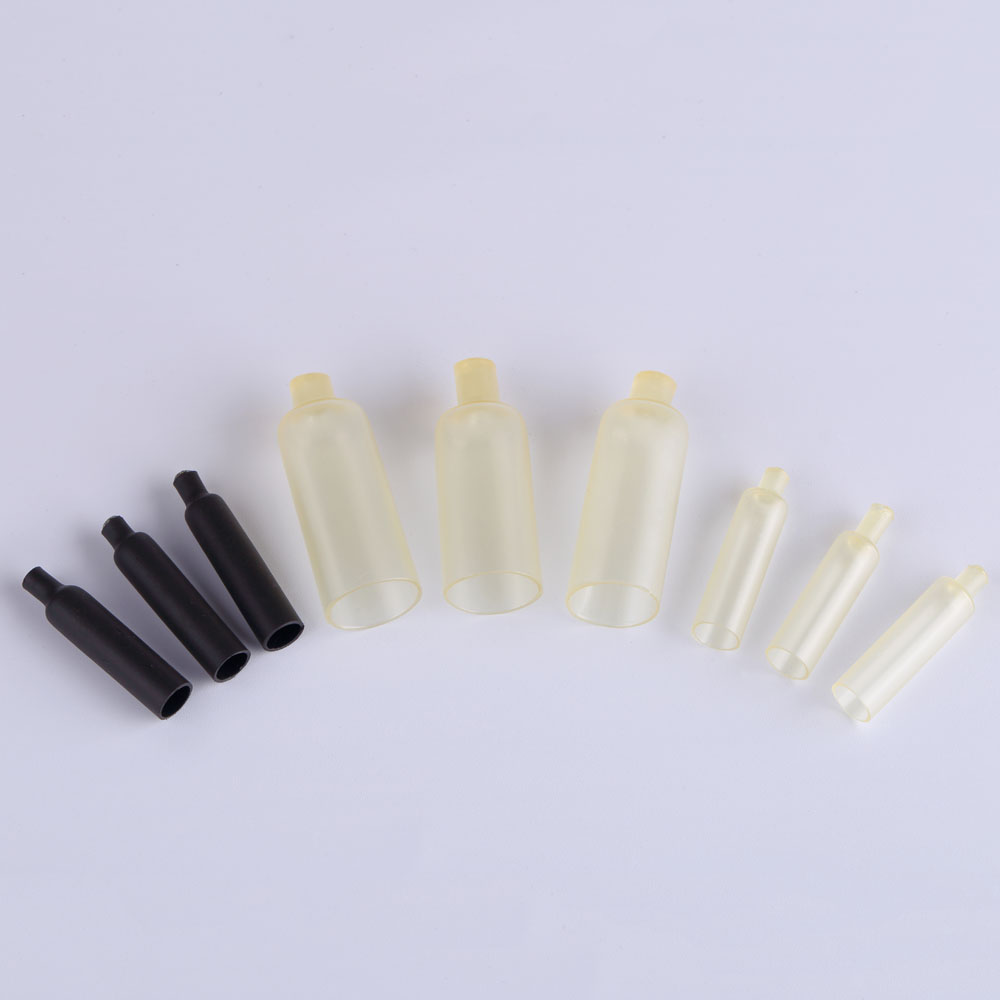

专为电气线束而设计,为线束提供机械和环境保护。透明封帽可以穿透检查内部元器件,黑色封帽具有阻燃性能。

特性

收缩率:3:1,4:1

坚韧的外护套提供应力释放和抗磨损保护

厚胶层对流体和水气形成了一个有效的屏障,并且有较宽的操作温度范围

操作温度范围

操作温度: -40℃~105℃

开始收缩温度: 100℃

最低完全收缩温度: 135℃

性能参数

Property

Test Method

Typical Value

Operating temperature

IEC 216

-55℃~105℃

Tensile strength

ASTM D 638

>14MPa

Elongation at break

ASTM D 638

>400%

Density

ASTM D 792

1.05

Elongation at break after aging

150℃,168hrs

>300%

Dielectric strength

IEC 243

>15KV/mm

Volume resistance

IEC 93

>1014Ω.cm

产品规格

Part No.

Standard length    L (mm)

As Supplied

After Recover

Dmin(mm/inch)

dmax(mm/inch)

Wmin(mm/inch)

Shrinkage ratio:4:1

AMC-E-1

30,35

5.72
(0.225)

1.27
(0.050)

1.20
(0.047)

AMC-E-2

30,35

7.44
(0.293)

1.65
(0.065)

1.52
(.0060)

AMC-E-3

40,50

10.85
(0.427)

2.41
(0.095)

1.91
(0.075)

Shrinkage ratio:3:1

AMC-D-1

22.0
(0.87)

3.2
(0.125)

0.58(0.023)

1.22(0.048)

AMC-D-2

25.4
(1.00)

4.8
(0.187)

1.52(0.060)

1.57(0.062)

AMC-D-3

28.4
(1.12)

6.4
(0.250)

2.03(0.080)

1.98(0.078)

AMC-D-4

31.8
(1.25)

9.5
(0.375)

3.05(0.120)

2.08(0.082)

AMC-D-5

38.1
(1.50)

12.7
(0.500)

4.08(0.161)

2.54(0.100)
